December 03, 2003

Removing the intercooler

The intercooler is fit to the chassis by 4 bolts, and ofcourse, the last bolt won't come loose.

We need some power tools to remove this little bastard. I used a 'haakse slijper' to cut the bolt.

And there it is, the intercooler. The intercooler will cool the before it is fed to the engine, The volume will decrease and more air can be puped in the ignition room.

Posted by Marnix Renne at 09:27 AM | Comments (0)

December 05, 2003

Lots of hoses

Lots and lots of hoses to be disconnected. I label them with section number and picture number from the original Sierra Cosworth Workshope Manual.

Throttle valve

Fuel rail and inlet manifold

Left side of the engine

Overview engine

Fuel pressure regulator

Posted by Marnix Renne at 09:29 AM | Comments (0)

December 06, 2003

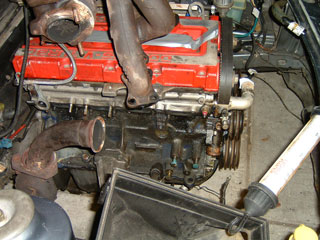

Engine

Just a collection of pictures.

Posted by Marnix Renne at 09:30 AM | Comments (0)

December 13, 2003

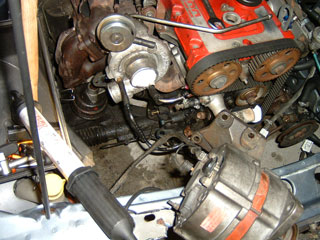

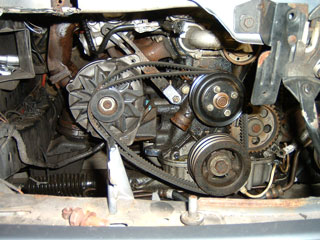

Removing the dynamo

More and more space is becoming available around the engine.

Posted by Marnix Renne at 09:31 AM | Comments (0)

December 19, 2003

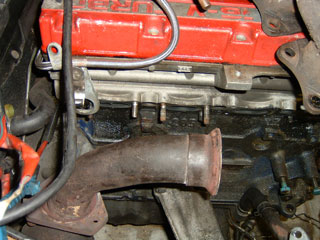

Removing the turbo

Eventually, after removing the outlet manifold, I thought I was able te remove the turbo. Unfortunately, I didn't manage to remove the outlet manifold from the turbo. I'll try this another time, it's not in the way.
